Current Electricity: JEE Mains 2022 June 29 Shift 1

Medium· Ohm's law, resistivity, drift velocity· +4 / 0

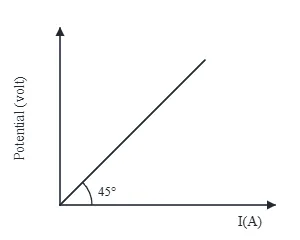

The variation of applied potential and current flowing through a given wire is shown in figure. The length of wire is

31.4\ \text{cm}

. The diameter of wire is measured as

2.4\ \text{cm}

. The resistivity of the given wire is measured as

x\times10^{-3}\ \Omega\,\text{cm}

. The value of

x

is ______. [Take

\pi=3.14

]

Question diagram

Your answer (numerical)
