Medium· Zener diode, LED, photodiode, solar cell· +4 / −1

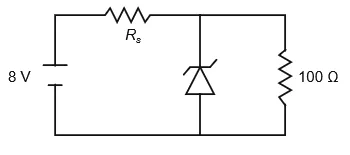

In the voltage regulator circuit shown below, the reverse breakdown voltage of zener diode is 5 V and power dissipated across it is 100 mW. Find
Semiconductor Electronics: JEE Mains 2024 1st Feb Shift 1
About this question
- Previous-year question from JEE Mains 2024 1st Feb Shift 1.
- Tagged medium difficulty.
